Ethidium Bromide Staining: Principles, Protocol, and Applications in Molecular Biology

Ethidium bromide staining is one of the most widely used techniques in molecular biology for the visualization of nucleic acids after gel electrophoresis. The method relies on the ability of ethidium bromide (EtBr), a fluorescent intercalating dye, to bind DNA and RNA molecules and emit strong fluorescence under ultraviolet (UV) light. Because of its high sensitivity and simplicity, this technique remains a standard procedure in research laboratories studying genetics, microbiology, and biotechnology.

Principle of Ethidium Bromide Staining

Ethidium bromide is a planar aromatic molecule that intercalates between stacked base pairs of double-stranded DNA. When free in solution, EtBr fluoresces weakly. However, once intercalated into nucleic acids, its fluorescence intensity increases significantly.

When illuminated with UV light (around 300–312 nm), the EtBr–DNA complex emits orange fluorescence (~590 nm). This property allows DNA fragments separated by agarose or polyacrylamide gel electrophoresis to be visualized as fluorescent bands.

The fluorescence intensity is approximately proportional to the amount of nucleic acid present, allowing semi-quantitative estimation of DNA concentration.

Chemical and Molecular Characteristics

Ethidium bromide (3,8-diamino-5-ethyl-6-phenylphenanthridinium bromide) belongs to the phenanthridinium family of intercalating agents. Its flat aromatic structure allows it to slide between adjacent DNA base pairs.

Intercalation produces several molecular effects:

Increased DNA length due to base pair separation

Reduced DNA supercoiling

Stabilization of the DNA helix

Enhanced fluorescence due to restricted molecular motion

These properties make ethidium bromide particularly effective for detecting double-stranded DNA fragments ranging from nanogram to microgram levels.

Applications in Molecular Biology

Ethidium bromide staining is routinely used in a variety of laboratory workflows:

1. DNA Visualization After Gel Electrophoresis

The most common use is detecting DNA fragments separated by agarose gel electrophoresis, typically following PCR amplification or restriction enzyme digestion.

2. PCR Product Verification

Researchers often confirm successful polymerase chain reaction (PCR) amplification by observing DNA bands corresponding to expected fragment sizes.

3. Plasmid DNA Analysis

EtBr staining allows visualization of different plasmid conformations such as:

Supercoiled DNA

Nicked circular DNA

Linear DNA

4. RNA Gel Electrophoresis

Although less common, EtBr can also stain ribosomal RNA bands to assess RNA integrity.

Standard Ethidium Bromide Staining Protocol

1. Gel Preparation

Prepare an agarose gel (typically 0.7–2% agarose) in electrophoresis buffer such as TAE (Tris-acetate-EDTA) or TBE (Tris-borate-EDTA).

2. Addition of Ethidium Bromide

Ethidium bromide is usually added to the molten agarose at a final concentration of 0.5 µg/mL before the gel solidifies.

3. Sample Loading and Electrophoresis

DNA samples are mixed with loading dye and loaded into the gel wells. A DNA ladder is included for fragment size estimation. The gel is then run at 80–120 V until adequate separation is achieved.

4. Visualization

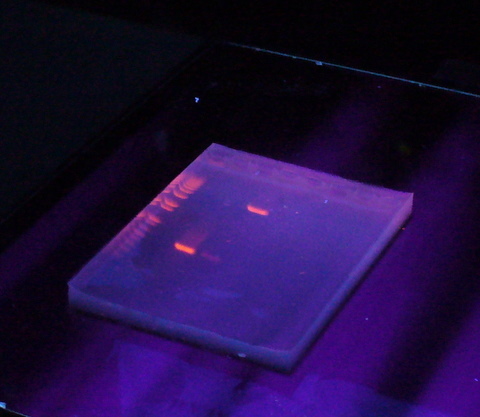

After electrophoresis, the gel is placed on a UV transilluminator, where DNA bands appear as bright orange fluorescent bands.

Post-Staining Method

An alternative approach involves staining the gel after electrophoresis:

1. Run electrophoresis without EtBr in the gel.

2. Immerse the gel in an ethidium bromide staining solution (0.5 µg/mL).

3. Incubate for 15–30 minutes with gentle agitation.

4. Rinse briefly with water and visualize under UV light.

This method reduces exposure of laboratory equipment and personnel to ethidium bromide during gel preparation.

Sensitivity and Detection Limits

Ethidium bromide staining can detect approximately 1–10 ng of DNA per band, depending on gel thickness, staining conditions, and imaging system sensitivity.

Although newer dyes may offer higher sensitivity, EtBr remains widely used due to its low cost and consistent performance.

Safety Considerations

Ethidium bromide is considered a mutagenic compound because it can intercalate into DNA and potentially cause mutations. Therefore, laboratories must follow strict safety procedures:

Wear nitrile gloves and laboratory coats

Avoid inhalation or ingestion

Dispose of EtBr waste according to institutional hazardous chemical protocols

Use UV protective shields or goggles during visualization

Alternative Fluorescent DNA Stains

Due to safety concerns associated with ethidium bromide, several alternative dyes have been developed:

SYBR Safe

SYBR Green

GelRed

GelGreen

Conclusion

Ethidium bromide staining remains a fundamental technique in molecular biology laboratories for detecting nucleic acids following gel electrophoresis. Despite the emergence of safer fluorescent dyes, EtBr continues to be widely used because of its simplicity, sensitivity, and cost-effectiveness. Understanding the chemical mechanism and proper handling procedures is essential for ensuring accurate nucleic acid visualization while maintaining laboratory safety.

Scientific References

1. Sambrook, J., & Russell, D. W. (2001). Molecular Cloning: A Laboratory Manual (3rd ed.). Cold Spring Harbor Laboratory Press.

2. Green, M. R., & Sambrook, J. (2012). Molecular Cloning: A Laboratory Manual. Cold Spring Harbor Laboratory Press.

3. Sharp, P. A., Sugden, B., & Sambrook, J. (1973). Detection of two restriction endonuclease activities in Haemophilus parainfluenzae using analytical agarose-ethidium bromide electrophoresis. Biochemistry, 12(16), 3055–3063.

4. Lee, L. G., Chen, C. H., & Chiu, L. A. (1986). Thiazole orange: A new dye for reticulocyte analysis. Cytometry, 7(6), 508–517.

5. Lunn, G., & Sansone, E. B. (1987). Destruction of Hazardous Chemicals in the Laboratory. Wiley.
